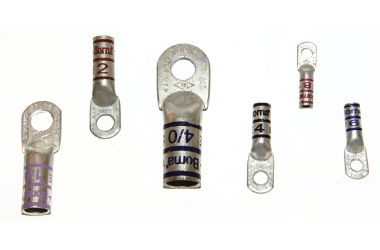

Referencia: Terminales de ponchar estañado
Usos: Conexiones eléctricas.
Material: Aleación de Cobre
|
| RANGO DE OPERACIÓN |
| REF |
CORRIENTE (Amp) |
CALIBRE (AWG o Kcmil) |
DIÁMETRO CONDUCTOR (mm) |
| TP-10 |
30 |
# 10 |
2.94 |
| TP-8 |
50 |
# 8 |
3.70 |
| TP-6 |
65 |
# 6 |
4.67 |
| TP-4 |
85 |
# 4 |
5.89 |
| TP-2 |
115 |
# 2 |
7.42 |
| TP-1/0 |
150 |
1/0 |
9.47 |
| TP-2/0 |
175 |
2/0 |
10.63 |
| TP-3/0 |
200 |
3/0 |
11.94 |
| TP-4/0 |
230 |
4/0 |
13.41 |
| TP-250 |
255 |
250 |
14.62 |
| TP-300 |
285 |
300 |
16.02 |
| TP-350 |
310 |
350 |
17.30 |
| TP-400 |
335 |
400 |
18.49 |
| TP-500 |
380 |
500 |
20.67 |
| TP-600 |
420 |
600 |
22.68 |
| TP-700 |
450 |
700 |
24.49 |
| TP-750 |
475 |
750 |
25.35 |
| TP-1000 |
1000 |
1000 |
29.28 |
