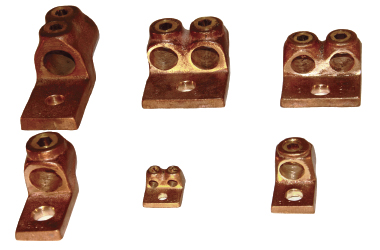

Referencia: T# TERMINAL
Usos: Bloques de terminales para uso industrial (Tipo BF)
Material: Aleación de Cobre
|
| RANGO DE OPERACION |
| REF |
AMPERAGE |
CALIBRE (AWG o Kcmil) |
TORNILLO |
DIAMETRO DEL CABLE (mm) |
| T1 |
50 |
6 |
1/4 |
4,72 |
| T2 |
70 |
4 |
1/4 |
5,96 |
| T3 |
90 |
2 |
5/16 |
7,51 |
| T4 |
125 |
1/0 |
3/8 |
9,5 |
| T5 |
145 |
2/0 |
7/16 |
10,67 |
| T6 |
175 |
3/0 |
1/2 |
11,98 |
| T7 |
200 |
3/0 |
1/2 |
11,98 |
| T8 |
225 |
4/0 |
1/2 |
13,45 |
| T9 |
250 |
250 |
5/8 |
14,64 |
| T10 |
300 |
300 |
5/8 |
16,02 |
| T11 |
350 |
350 |
5/8 |
17,32 |
| T12 |
400 |
400 |
3/4 |
18,51 |
| T13 |
500 |
500 |
7/8 |
20,7 |
| T15 |
1000 |
1000 |
3/4 |
29,29 |
|
|
